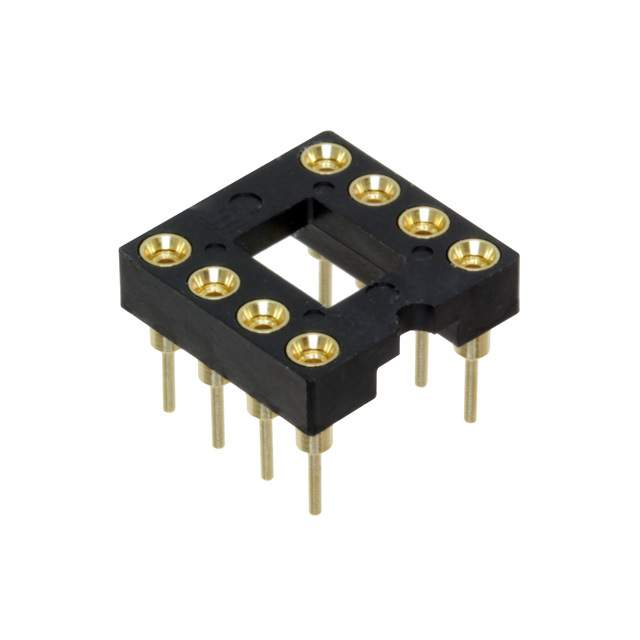

ICA-308-SGG
| Manufacturer: | Samtec, Inc. |
In Stock 40 pcs
|
|
|---|---|---|---|
| Datasheet: | ICA-308-SGG | ||
| Product Category: | Sockets for ICs, Transistors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN IC DIP SOCKET 8POS GOLD | $2.16 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- DIP, 0.3" (7.62mm) Row Spacing
- Series
- ICA
- Features
- Open Frame
- Packaging
- Bulk
- Part Status
- Active
- Termination
- Solder
- Pitch - Post
- 0.100" (2.54mm)
- Mounting Type
- Through Hole
- Pitch - Mating
- 0.100" (2.54mm)
- Contact Resistance
- 10mOhm
- Dielectric Material
- Polyester, Glass Filled
- Contact Finish - Post
- Gold
- Current Rating (Amps)
- 1A
- Operating Temperature
- -55°C ~ 125°C
- Contact Finish - Mating
- Gold
- Contact Material - Post
- Brass
- Termination Post Length
- 0.125" (3.18mm)
- Contact Material - Mating
- Beryllium Copper
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- 30.0µin (0.76µm)
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
- Number of Positions or Pins (Grid)
- 8 (2 x 4)
