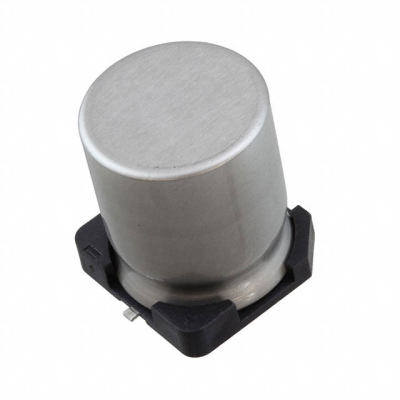

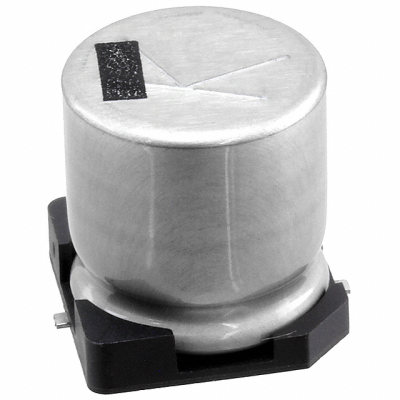

25TLV1000M12.5X13.5
| Manufacturer: | Rubycon |
In Stock 5396 pcs
|
|
|---|---|---|---|
| Datasheet: | 25TLV1000M12.5X13.5 | ||
| Product Category: | Aluminum Electrolytic Capacitors | Reference Price (In US Dollars) | 1pcs |
| Description: | CAP ALUM 1000UF 20% 25V SMD | $1.77 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- TLV
- Ratings
- AEC-Q200
- Impedance
- 65 mOhms
- Packaging
- Cut Tape (CT)
- Tolerance
- ±20%
- Capacitance
- 1000µF
- Part Status
- Active
- Applications
- Automotive
- Lead Spacing
- -
- Polarization
- Polar
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can - SMD
- Voltage - Rated
- 25V
- Lifetime @ Temp.
- 5000 Hrs @ 105°C
- Size / Dimension
- 0.492" Dia (12.50mm)
- Height - Seated (Max)
- 0.551" (14.00mm)
- Operating Temperature
- -55°C ~ 105°C
- Surface Mount Land Size
- 0.512" L x 0.512" W (13.00mm x 13.00mm)
- Ripple Current @ Low Frequency
- 660mA @ 120Hz
- Ripple Current @ High Frequency
- 1.1A @ 100kHz
- ESR (Equivalent Series Resistance)
- -
