FDA2-28080QBHK4D-L
| Manufacturer: | Qualtek |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | FDA2-28080QBHK4D-L | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |

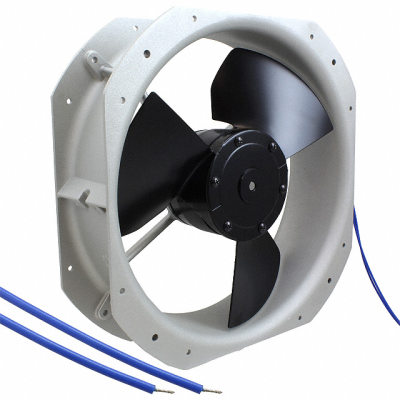

| Description: | FAN AXIAL 280X80MM BALL 230VAC | $148.93 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2900 RPM
- Noise
- 73.0 dB(A)
- Width
- 80.00mm
- Series
- HPLC, FDA2-28080
- Weight
- 6.7 lbs (3 kg)
- Air Flow
- 1150.0 CFM (32.20m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, cURus, TUV
- Part Status
- Active
- Termination
- Terminal Block
- Bearing Type
- Ball
- Power (Watts)
- 138W
- Voltage Range
- -
- Static Pressure
- 0.807 in H2O (201.0 Pa)
- Voltage - Rated
- 230VAC
- Lifetime @ Temp.
- 100000 Hrs @ 25°C
- Material - Blade
- Steel
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 320mm L x 320mm H
- Ingress Protection
- IP56M - Dust Protected, Water Resistant
- Current Rating (Amps)
- 0.630A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
