FDA2-17238NBHT3F-SF
| Manufacturer: | Qualtek |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | FDA2-17238NBHT3F-SF | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |

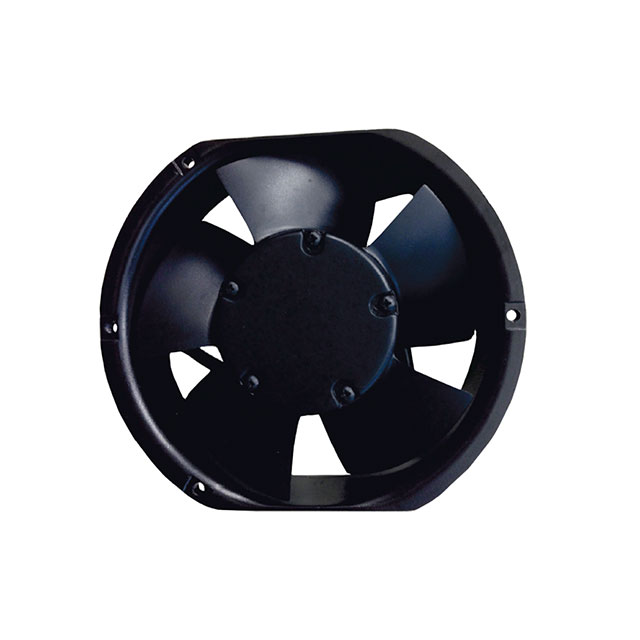

| Description: | FAN AXIAL 172X38.5MM 115VAC TERM | $51.86 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3100 RPM
- Noise
- 59.0 dB(A)
- Width
- 38.50mm
- Series
- HPLC, FDA2-17238-SF
- Weight
- 1.808 lb (820 g)
- Air Flow
- 240.0 CFM (6.72m³/min)
- Fan Type
- Tubeaxial
- Features
- Salt Fog Rated, Thermal Overload Protector (TOP)
- Approvals
- CE, cURus, TUV
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Power (Watts)
- 25.00W
- Voltage Range
- -
- Static Pressure
- 0.571 in H2O (142.2 Pa)
- Voltage - Rated
- 115VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Rectangular/Rounded - 172mm L x 151mm H
- Ingress Protection
- IP56M - Dust Protected, Water Resistant
- Current Rating (Amps)
- 0.210A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
