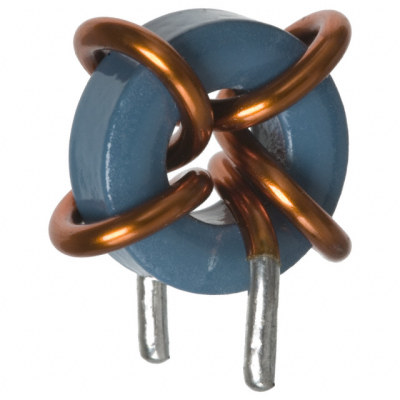

PA0690

Product Parameter

Type

Toroidal

Series

Bare Coil

Ratings

-

Features

-

Q @ Freq

-

Packaging

Tray

Shielding

Unshielded

Tolerance

±20%

Inductance

880nH

Part Status

Obsolete

Mounting Type

Through Hole

Package / Case

Radial, Vertical (Open)

Material - Core

-

Size / Dimension

0.626" Dia x 0.346" W (15.90mm x 8.80mm)

DC Resistance (DCR)

1.5mOhm Max

Current - Saturation

-

Current Rating (Amps)

22.5A

Height - Seated (Max)

-

Operating Temperature

-40°C ~ 130°C

Supplier Device Package

-

Frequency - Self Resonant

-
