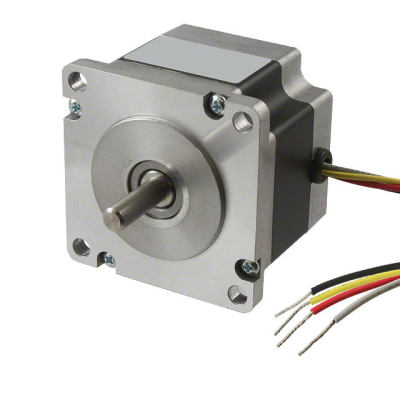

23H018D10B
| Manufacturer: | Portescap |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 23H018D10B | ||
| Product Category: | Stepper Motors | Reference Price (In US Dollars) | 1pcs |
| Description: | STEP MOTOR HYBRID BIPOLAR 5.7V | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Hybrid
- Series
- H3
- Weight
- 1 lb (453.59 g)
- Accuracy
- ±5%
- Features
- Round Shaft
- Approvals
- CE, UL
- Coil Type
- Bipolar
- Step Angle
- 1.8°
- Part Status
- Obsolete
- Rotor Inertia
- 190gcm²
- Coil Resistance
- 5.7 Ohms
- NEMA Frame Size
- 23
- Voltage - Rated
- 5.7VDC
- Diameter - Shaft
- 0.250" (6.35mm)
- Size / Dimension
- Square - 2.250" x 2.250" (57.15mm x 57.15mm)
- Termination Style
- Wire Leads
- Steps per Revolution
- 200
- Current Rating (Amps)
- 1A
- Mounting Hole Spacing
- 1.856" (47.14mm)
- Operating Temperature
- -20°C ~ 40°C
- Length - Shaft and Bearing
- 0.810" (20.57mm)
- Torque - Holding (oz-in / mNm)
- 75 / 530
