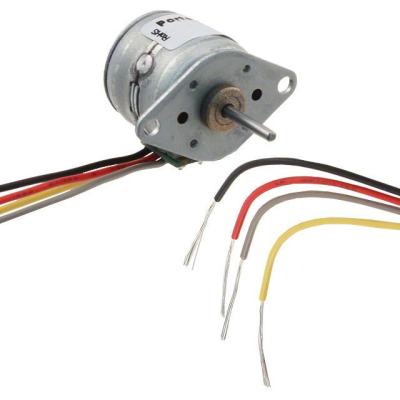

15M020D1B-N
| Manufacturer: | Portescap |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 15M020D1B-N | ||
| Product Category: | Stepper Motors | Reference Price (In US Dollars) | 1pcs |
| Description: | STEPPER MOTOR PM BIPOLAR 5V | $18.95 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Permanent Magnet
- Series
- 15M
- Weight
- 0.031 lb (14.06 g)
- Accuracy
- -
- Features
- Round Shaft
- Approvals
- -
- Coil Type
- Bipolar
- Step Angle
- 18°
- Part Status
- Active
- Rotor Inertia
- 0.115gcm²
- Coil Resistance
- 40 Ohms
- Voltage - Rated
- 5VDC
- Diameter - Shaft
- 0.059" (1.50mm)
- Size / Dimension
- Round - 0.610" Dia (15.50mm)
- Termination Style
- Wire Leads
- Steps per Revolution
- 20
- Current Rating (Amps)
- 125mA
- Mounting Hole Spacing
- 0.787" (20.00mm)
- Operating Temperature
- -20°C ~ 70°C
- Length - Shaft and Bearing
- 0.394" (10.00mm)
- Torque - Holding (oz-in / mNm)
- 0.55 / 3.9
