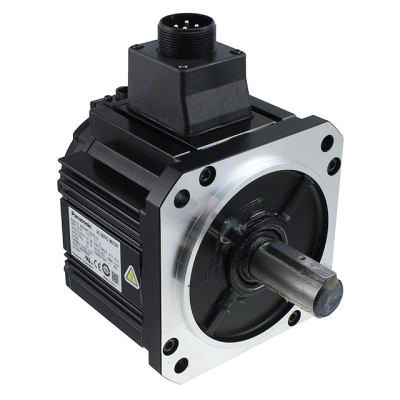

MDME102G1G
| Manufacturer: | Panasonic Industrial Automation Sales |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | MDME102G1G | ||
| Product Category: | Motors - AC, DC | Reference Price (In US Dollars) | 1pcs |
| Description: | SERVOMOTOR 2000 RPM 200VAC | $988 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2000 RPM
- Type
- AC Motor
- Series
- MINAS A5
- Weight
- 11 lbs (5 kg)
- Features
- Key, Oil Seal
- Function
- Servomotor
- Approvals
- CE, CSA, cULus, TUV, UL
- Motor Type
- -
- Part Status
- Active
- Encoder Type
- Incremental
- Power - Rated
- 1kW
- Voltage - Rated
- 200VAC
- Diameter - Shaft
- 0.866" (22.00mm)
- Size / Dimension
- Square - 5.118" x 5.118" (130.00mm x 130.00mm)
- Termination Style
- Connector
- Gear Reduction Ratio
- -
- Mounting Hole Spacing
- 5.709" (145.00mm)
- Operating Temperature
- 0°C ~ 40°C
- Length - Shaft and Bearing
- 2.165" (55.00mm)
- Torque - Rated (oz-in / mNm)
- 675.5 / 4770
- Torque - Max Momentary (oz-in / mNm)
- 2025 / 14300
