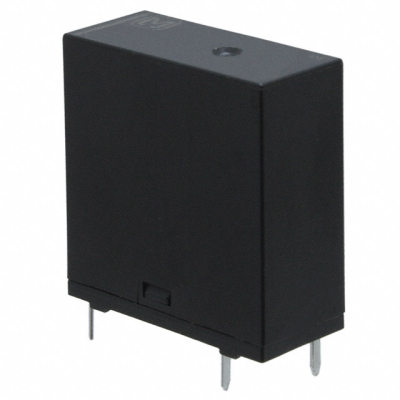

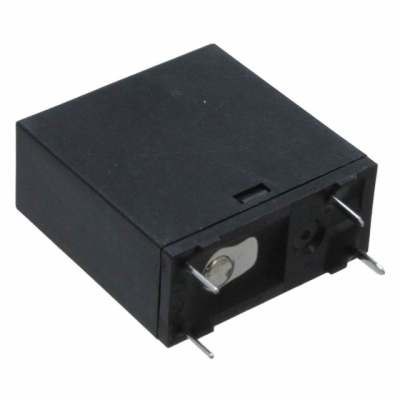

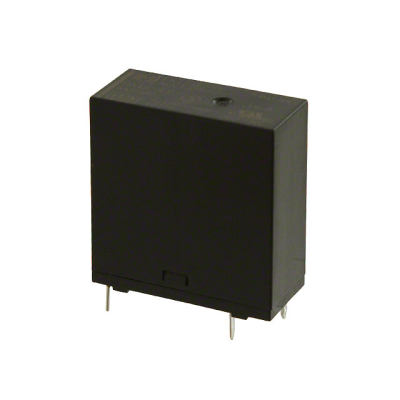

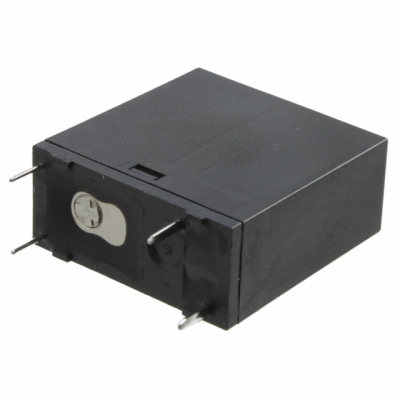

LKT1AF-9V
| Manufacturer: | Panasonic Electric Works |
In Stock 97 pcs
|
|
|---|---|---|---|
| Datasheet: | LKT1AF-9V | ||
| Product Category: | Power Relays, Over 2 Amps | Reference Price (In US Dollars) | 1pcs |
| Description: | RELAY GEN PURPOSE SPST 5A 9V | $1.73 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- LK-T
- Features
- -
- Coil Type
- Non Latching
- Packaging
- Tray
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- Sealed - Flux Protection
- Coil Current
- 27.8mA
- Coil Voltage
- 9VDC
- Contact Form
- SPST-NO (1 Form A)
- Operate Time
- 15ms
- Release Time
- 5ms
- Mounting Type
- Through Hole
- Coil Insulation
- -
- Coil Resistance
- 324 Ohms
- Contact Material
- Silver Tin Oxide (AgSnO)
- Switching Voltage
- 277VAC - Max
- Termination Style
- PC Pin
- Must Operate Voltage
- 6.3 VDC
- Must Release Voltage
- 0.9 VDC
- Operating Temperature
- -40°C ~ 70°C
- Contact Rating (Current)
- 5A
