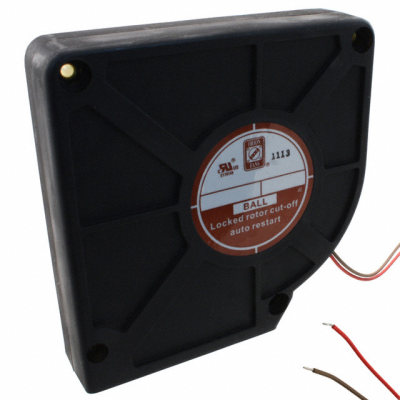

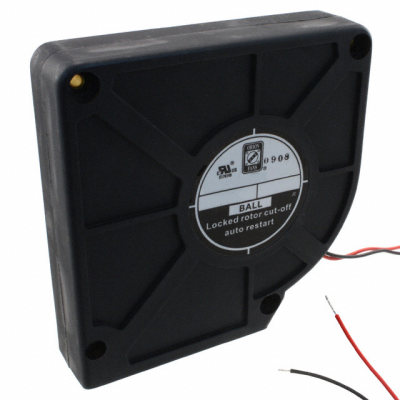

ODB600PT-24MB
| Manufacturer: | Orion Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | ODB600PT-24MB | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN BLOWER 120.5X32MM 24VDC WIRE | $23.27 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2500 RPM
- Noise
- 42.0 dB
- Width
- 32.00mm
- Series
- ODB600PT
- Weight
- -
- Air Flow
- 25.0 CFM (0.700m³/min)
- Fan Type
- Blower
- Features
- -
- Approvals
- cURus
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- 10 ~ 29VDC
- Static Pressure
- 0.470 in H2O (117.1 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Size / Dimension
- Square/Rounded - 120.5mm L x 120.5mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.300A
- Operating Temperature
- -4 ~ 176°F (-20 ~ 80°C)
