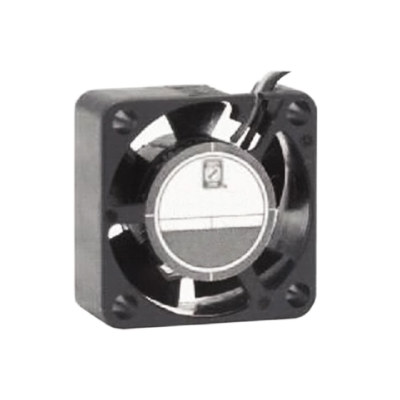

OD2510-12MB02A
| Manufacturer: | Orion Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | OD2510-12MB02A | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 25.5X10MM 12VDC WIRE | $19.44 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 10000 RPM
- Noise
- 24.0 dB
- Width
- 10.00mm
- Series
- OD2510
- Weight
- 0.018 lb (8.16 g)
- Air Flow
- 2.1 CFM (0.059m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Sensor
- Approvals
- CE, cURus
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 1.44W
- Voltage Range
- 9 ~ 13.2VDC
- Static Pressure
- 0.160 in H2O (39.8 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 25mm L x 25mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.035A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
