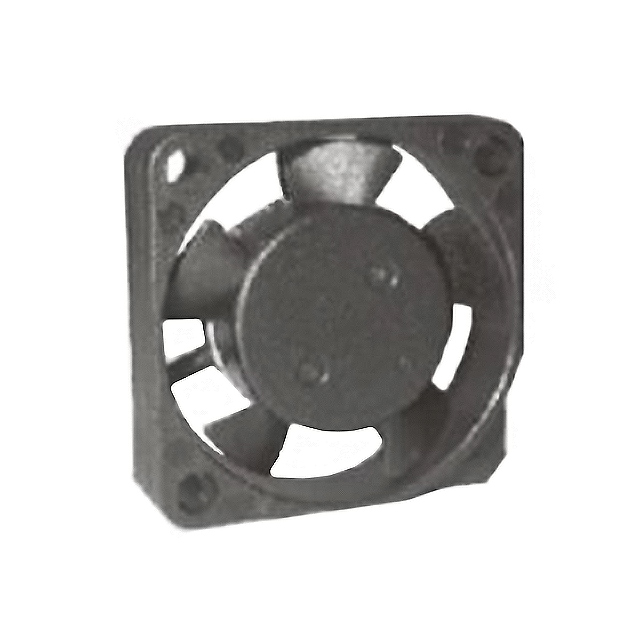

OD2506-05LSS
| Manufacturer: | Orion Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | OD2506-05LSS | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 25X6MM 5VDC WIRE | $8.49 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 9000 RPM
- Noise
- 20.0 dB
- Width
- 6.00mm
- Series
- OD2506
- Weight
- -
- Air Flow
- 1.8 CFM (0.050m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- cURus
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Sealed Sleeve
- Voltage Range
- 3.5 ~ 6VDC
- Static Pressure
- 0.100 in H2O (24.9 Pa)
- Voltage - Rated
- 5VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Size / Dimension
- Square - 25mm L x 25mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.080A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
