Lanka Micro

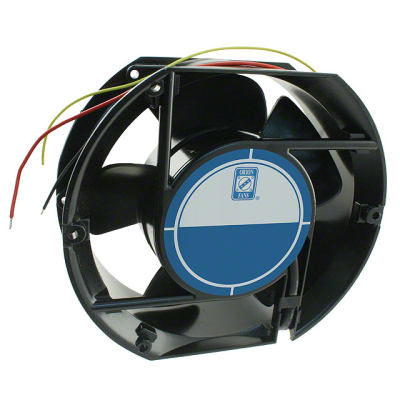

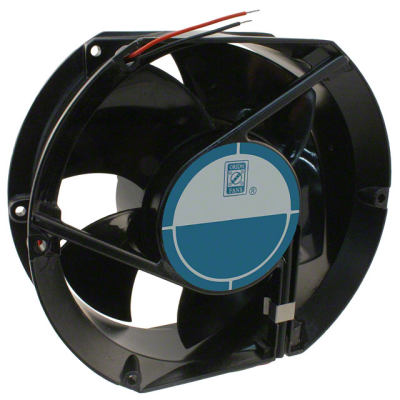

OD172SAP-12HB
| Manufacturer: | Orion Fans |
In Stock 5 pcs
|
|
|---|---|---|---|
| Datasheet: | OD172SAP-12HB | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 172X50.8MM 12VDC WIRE | $82.9 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3200 RPM
- Noise
- 52.0 dB
- Width
- 50.80mm
- Series
- OD172S
- Weight
- -
- Air Flow
- 230.0 CFM (6.44m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- 8 ~ 14VDC
- Static Pressure
- 0.750 in H2O (186.8 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material - Frame
- Aluminum
- Size / Dimension
- Rectangular/Rounded - 172mm L x 150mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 1.9A
- Operating Temperature
- -4 ~ 167°F (-20 ~ 75°C)
