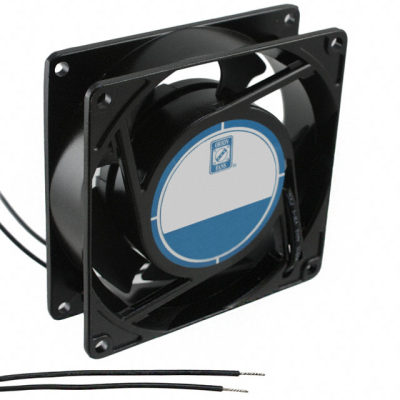

OA92AP-22-1WB
| Manufacturer: | Orion Fans |
In Stock 144 pcs
|
|
|---|---|---|---|
| Datasheet: | OA92AP-22-1WB | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 92X26MM 230VAC WIRE | $17.74 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3000 RPM
- Noise
- 30.0 dB
- Width
- 26.00mm
- Series
- OA92
- Weight
- -
- Air Flow
- 35.0 CFM (0.980m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 13.00W
- Voltage Range
- 160 ~ 260VAC
- Static Pressure
- 0.200 in H2O (49.8 Pa)
- Voltage - Rated
- 230VAC
- Lifetime @ Temp.
- 60000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 92mm L x 92mm H
- Ingress Protection
- -
- Current Rating (Amps)
- -
- Operating Temperature
- -4 ~ 176°F (-20 ~ 80°C)
