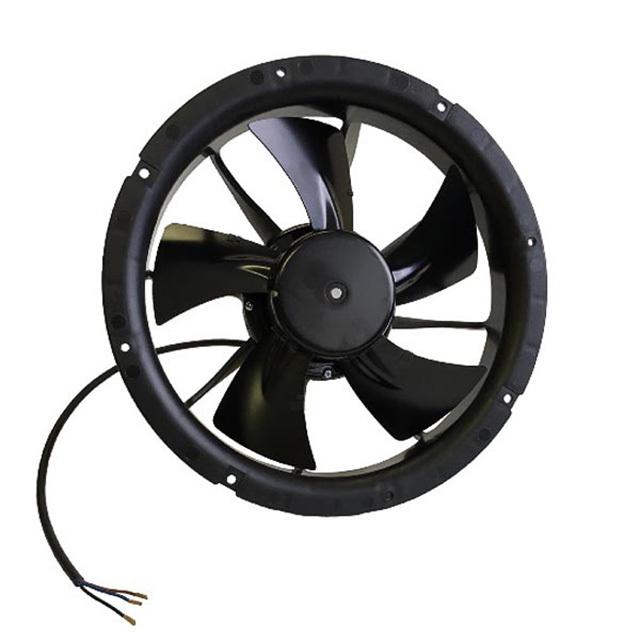

OA200EC-22-1WB
| Manufacturer: | Orion Fans |
In Stock 3 pcs
|
|
|---|---|---|---|
| Datasheet: | OA200EC-22-1WB | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 250X76MM 230VAC DUAL SPEED E | $108.9 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 1400/2200 RPM
- Noise
- 44/55 dB
- Width
- 76.10mm
- Series
- OA200EC
- Weight
- 2.2 lbs (997.9 g)
- Air Flow
- 290.0 ~ 460.0 CFM (8.12 ~ 12.88m³/min)
- Fan Type
- Tubeaxial
- Features
- Dual Speed, Electronic Commutation (EC), Thermal Overload Protector (TOP)
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 8/26W
- Voltage Range
- -
- Static Pressure
- 0.280/0.460 in H2O (69.7/114.6 Pa)
- Voltage - Rated
- 230VAC
- Lifetime @ Temp.
- 40000 Hrs @ 40°C
- Material - Blade
- Metal
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Round - 250mm Dia
- Ingress Protection
- IP55 - Dust Protected, Water Resistant
- Current Rating (Amps)
- 0.08/0.24A
- Operating Temperature
- -13 ~ 122°C (-25 ~ 50°C)
