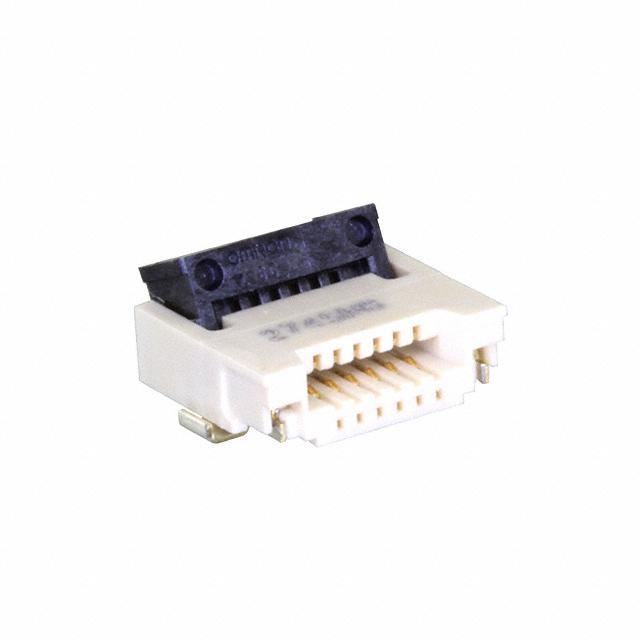

XF3M-0615-1B
| Manufacturer: | Omron Electronics Inc-EMC Div |
In Stock 450 pcs
|
|
|---|---|---|---|
| Datasheet: | XF3M-0615-1B | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN FFC FPC 6POS 0.50MM R/A | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.020" (0.50mm)
- Series
- XF3M
- Features
- Solder Retention
- Packaging
- Digi-Reel®
- Part Status
- Active
- Termination
- Solder
- Housing Color
- Natural
- Mating Cycles
- 20
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- Black
- Cable End Type
- Tapered
- Contact Finish
- Gold
- Flat Flex Type
- FFC, FPC
- Voltage Rating
- 50V
- Locking Feature
- Rotary Lock, Backlock
- Contact Material
- Copper Alloy
- Actuator Material
- Liquid Crystal Polymer (LCP), Halogen Free
- FFC, FCB Thickness
- 0.30mm
- Height Above Board
- 0.079" (2.00mm)
- Dielectric Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Number of Positions
- 6
- Current Rating (Amps)
- 0.5A
- Operating Temperature
- -30°C ~ 85°C
- Connector/Contact Type
- Contacts, Top and Bottom
- Contact Finish Thickness
- Flash
- Material Flammability Rating
- UL94 V-0
