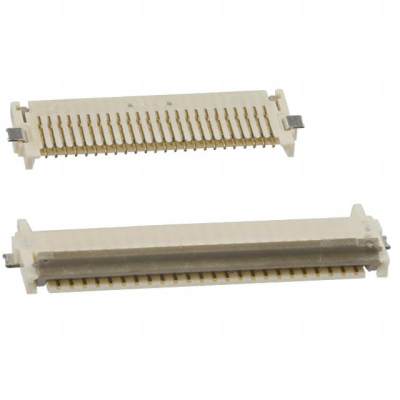

XF2R34154A
| Manufacturer: | Omron Electronics Inc-EMC Div |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | XF2R34154A | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN FPC 34POS 0.50MM R/A | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.020" (0.50mm)
- Series
- XF2R
- Features
- Solder Retention
- Packaging
- Cut Tape (CT)
- Part Status
- Obsolete
- Termination
- Solder
- Housing Color
- Natural
- Mating Cycles
- 20
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- Brown
- Cable End Type
- Tabbed
- Contact Finish
- Gold
- Flat Flex Type
- FPC
- Voltage Rating
- 50V
- Locking Feature
- Rotary Lock, Backlock
- Contact Material
- Copper Alloy
- Actuator Material
- Liquid Crystal Polymer (LCP)
- FFC, FCB Thickness
- 0.12mm
- Height Above Board
- 0.035" (0.88mm)
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Number of Positions
- 34
- Current Rating (Amps)
- 0.3A
- Operating Temperature
- -30°C ~ 85°C
- Connector/Contact Type
- Contacts, Top and Bottom
- Contact Finish Thickness
- 5.90µin (0.150µm)
- Material Flammability Rating
- UL94 V-0
