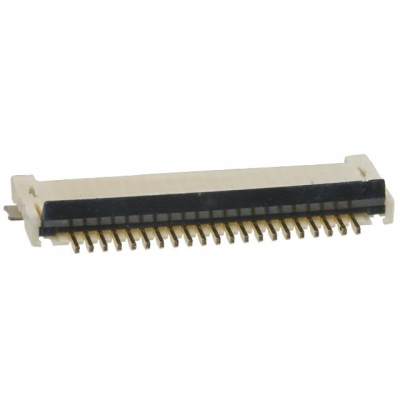

XF2N21153

Product Parameter

Pitch

0.020" (0.50mm)

Series

XF2N

Features

Solder Retention

Packaging

Digi-Reel®

Part Status

Obsolete

Termination

Solder

Housing Color

Natural

Mating Cycles

20

Mounting Type

Surface Mount, Right Angle

Actuator Color

Black

Cable End Type

Straight

Contact Finish

Gold

Flat Flex Type

FPC

Voltage Rating

50V

Locking Feature

Rotary Lock, Backlock

Contact Material

Copper Alloy

Actuator Material

Liquid Crystal Polymer (LCP)

FFC, FCB Thickness

0.20mm

Height Above Board

-

Dielectric Material

Liquid Crystal Polymer (LCP)

Number of Positions

21

Current Rating (Amps)

0.3A

Operating Temperature

-30°C ~ 85°C

Connector/Contact Type

Contacts, Top and Bottom

Contact Finish Thickness

5.90µin (0.150µm)

Material Flammability Rating

UL94 V-0
