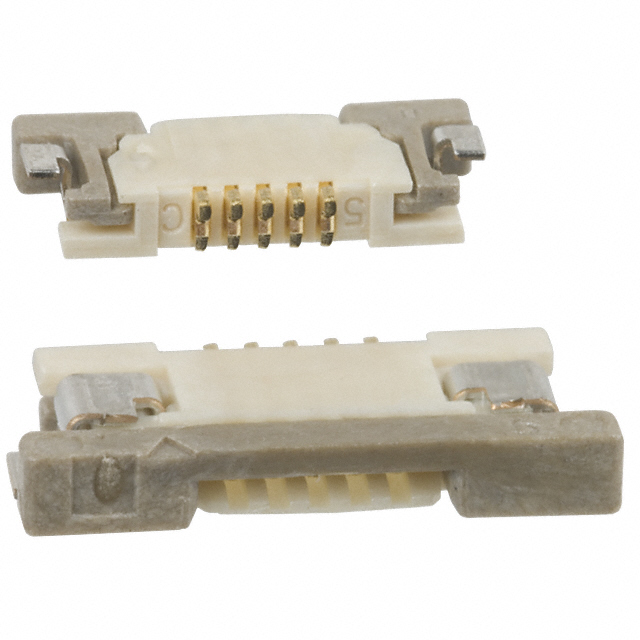

XF2L-0535-1
| Manufacturer: | Omron Electronics Inc-EMC Div |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | XF2L-0535-1 | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN FPC BOTTOM 5POS 0.50MM R/A | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.020" (0.50mm)
- Series
- XF2L
- Features
- Zero Insertion Force (ZIF)
- Packaging
- Cut Tape (CT)
- Part Status
- Obsolete
- Termination
- Solder
- Housing Color
- Natural
- Mating Cycles
- 30
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- Brown
- Cable End Type
- Straight
- Contact Finish
- Tin Alloy
- Flat Flex Type
- FPC
- Voltage Rating
- 50V
- Locking Feature
- Slide Lock
- Contact Material
- Copper Alloy
- Actuator Material
- Liquid Crystal Polymer (LCP)
- FFC, FCB Thickness
- 0.30mm
- Height Above Board
- 0.047" (1.20mm)
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Number of Positions
- 5
- Current Rating (Amps)
- 0.5A
- Operating Temperature
- -30°C ~ 85°C
- Connector/Contact Type
- Contacts, Bottom
- Contact Finish Thickness
- 78.7µin (2.00µm)
- Material Flammability Rating
- UL94 V-0
