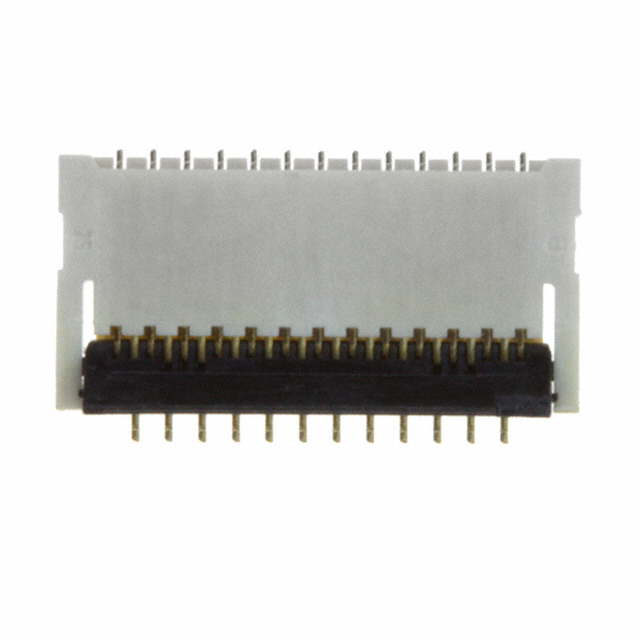

XF2B-2545-31A
| Manufacturer: | Omron Electronics Inc-EMC Div |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | XF2B-2545-31A | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN FPC 25POS 0.30MM R/A | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.012" (0.30mm)
- Series
- XF2B
- Features
- -
- Packaging
- Digi-Reel®
- Part Status
- Obsolete
- Termination
- Solder
- Housing Color
- Natural
- Mating Cycles
- 20
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- Black
- Cable End Type
- Straight
- Contact Finish
- Gold
- Flat Flex Type
- FPC
- Voltage Rating
- 50V
- Locking Feature
- Rotary Lock, Backlock
- Contact Material
- Copper Alloy
- Actuator Material
- Liquid Crystal Polymer (LCP), Halogen Free
- FFC, FCB Thickness
- 0.20mm
- Height Above Board
- 0.083" (2.10mm)
- Dielectric Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Number of Positions
- 25
- Current Rating (Amps)
- 0.2A
- Operating Temperature
- -30°C ~ 85°C
- Connector/Contact Type
- Contacts, Top and Bottom
- Contact Finish Thickness
- 5.90µin (0.150µm)
- Material Flammability Rating
- UL94 V-0
