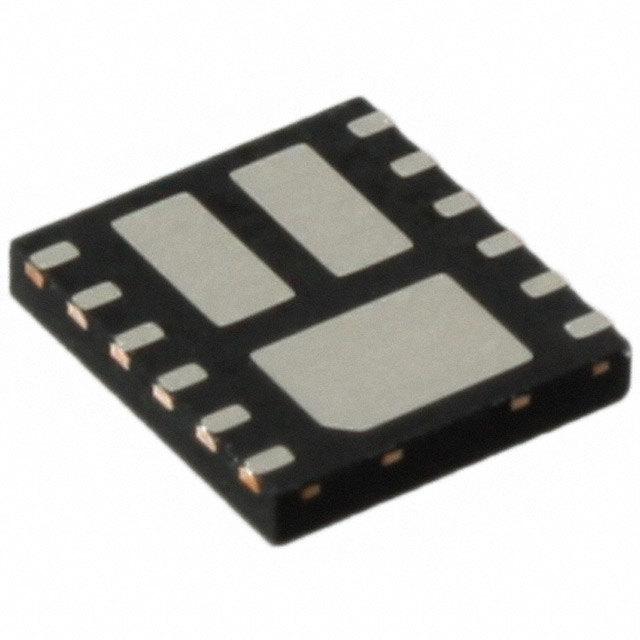

FDMQ8403

Product Parameter

Series

GreenBridge™ PowerTrench®

FET Type

4 N-Channel (H-Bridge)

Packaging

Digi-Reel®

FET Feature

Standard

Part Status

Active

Power - Max

1.9W

Mounting Type

Surface Mount

Package / Case

12-WDFN Exposed Pad

Vgs(th) (Max) @ Id

4V @ 250µA

Operating Temperature

-55°C ~ 150°C (TJ)

Rds On (Max) @ Id, Vgs

110mOhm @ 3A, 10V

Supplier Device Package

12-MLP (5x4.5)

Gate Charge (Qg) (Max) @ Vgs

5nC @ 10V

Drain to Source Voltage (Vdss)

100V

Input Capacitance (Ciss) (Max) @ Vds

215pF @ 15V

Current - Continuous Drain (Id) @ 25°C

3.1A
