RNE0E681MDN1PX
| Manufacturer: | Nichicon |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | RNE0E681MDN1PX | ||
| Product Category: | Aluminum - Polymer Capacitors | Reference Price (In US Dollars) | 1pcs |

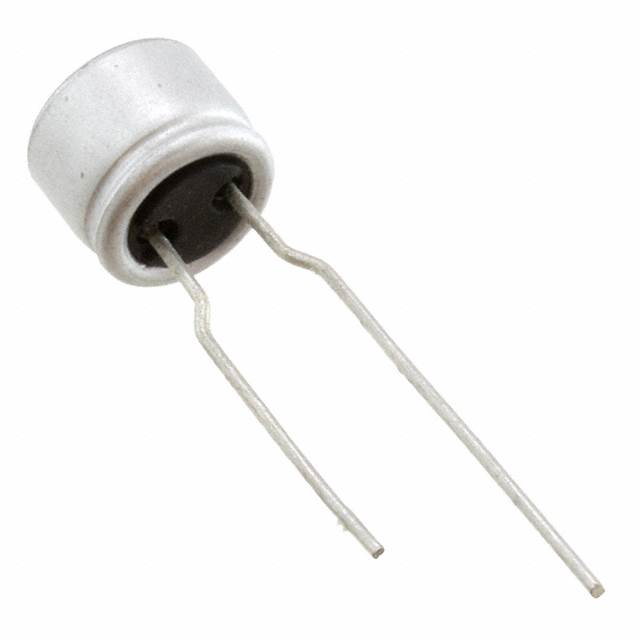

| Description: | CAP ALUM POLY 680UF 20% 2.5V T/H | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymer
- Series
- FPCAP, RNE
- Ratings
- -
- Packaging
- Cut Tape (CT)
- Tolerance
- ±20%
- Capacitance
- 680µF
- Part Status
- Discontinued at Digi-Key
- Applications
- General Purpose
- Lead Spacing
- 0.197" (5.00mm)
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Voltage - Rated
- 2.5V
- Lifetime @ Temp.
- 2000 Hrs @ 105°C
- Size / Dimension
- 0.315" Dia (8.00mm)
- Height - Seated (Max)
- 0.276" (7.00mm)
- Operating Temperature
- -55°C ~ 105°C
- Surface Mount Land Size
- -
- Ripple Current @ Low Frequency
- 490mA @ 120Hz
- Ripple Current @ High Frequency
- 4.9A @ 100kHz
- ESR (Equivalent Series Resistance)
- 8mOhm
