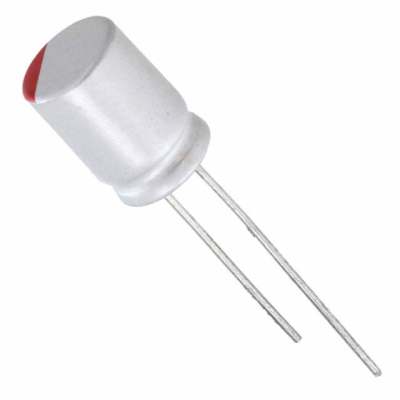

RHT0J821MDN1PH
| Manufacturer: | Nichicon |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | RHT0J821MDN1PH | ||
| Product Category: | Aluminum - Polymer Capacitors | Reference Price (In US Dollars) | 1pcs |
| Description: | CAP ALUM POLY 820UF 20% 6.3V T/H | $0.41 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymer
- Series
- FPCAP, RHT
- Ratings
- -
- Packaging
- Tape & Box (TB)
- Tolerance
- ±20%
- Capacitance
- 820µF
- Part Status
- Active
- Applications
- General Purpose
- Lead Spacing
- 0.197" (5.00mm)
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Voltage - Rated
- 6.3V
- Lifetime @ Temp.
- 1000 Hrs @ 125°C
- Size / Dimension
- 0.394" Dia (10.00mm)
- Height - Seated (Max)
- 0.551" (14.00mm)
- Operating Temperature
- -55°C ~ 125°C
- Surface Mount Land Size
- -
- Ripple Current @ Low Frequency
- 545mA @ 120Hz
- Ripple Current @ High Frequency
- 5.45A @ 100kHz
- ESR (Equivalent Series Resistance)
- 12mOhm
