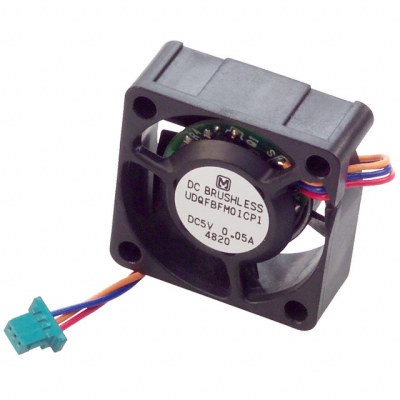

UDQFBFM01CP1
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | UDQFBFM01CP1 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 25X10MM 5VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 7800 RPM
- Noise
- 17.0 dB(A)
- Width
- 10.00mm
- Series
- UDQF
- Weight
- 0.014 lb (6.35 g)
- Air Flow
- 1.4 CFM (0.039m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- -
- Part Status
- Obsolete
- Termination
- 3 Wire Leads
- Bearing Type
- Sleeve
- Power (Watts)
- 200mW
- Voltage Range
- 4.5 ~ 5.5VDC
- Static Pressure
- 0.096 in H2O (23.9 Pa)
- Voltage - Rated
- 5VDC
- Lifetime @ Temp.
- 20000 Hrs @ 60°C
- Material - Blade
- -
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 25mm L x 25mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.045A
- Operating Temperature
- 32 ~ 158°F (0 ~ 70°C)
