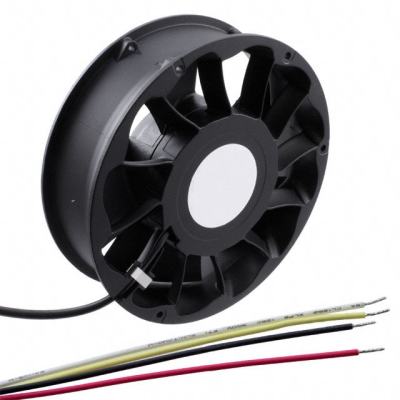

R172A5-051-D0760
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | R172A5-051-D0760 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 172.7X50.8MM 48VDC | $149.31 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 6300 RPM
- Noise
- 74.0 dB(A)
- Width
- 50.80mm
- Series
- R172
- Weight
- 2.4 lbs (1.1 kg)
- Air Flow
- 409.0 CFM (11.45m³/min)
- Fan Type
- Tubeaxial
- Features
- PWM Control, Speed Sensor (Tach)
- Approvals
- -
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 76.8W
- Voltage Range
- 30 ~ 72VDC
- Static Pressure
- 3.020 in H2O (752.3 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 172.7mm Dia
- Ingress Protection
- -
- Current Rating (Amps)
- 1.6A
- Operating Temperature
- -22 ~ 158°F (-30 ~ 70°C)
