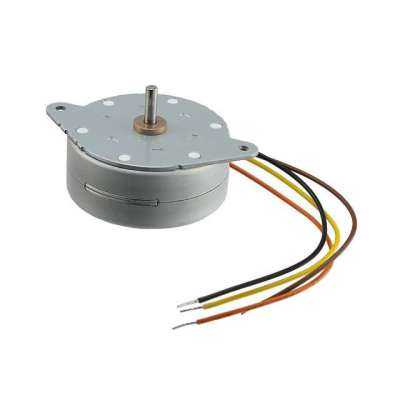

PM55L-048-HHD0
| Manufacturer: | NMB Technologies Corporation |
In Stock 20 pcs
|
|
|---|---|---|---|
| Datasheet: | PM55L-048-HHD0 | ||
| Product Category: | Stepper Motors | Reference Price (In US Dollars) | 1pcs |
| Description: | STEPPER MOTOR PM BIPOLAR 24V | $43.94 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Permanent Magnet
- Series
- PM
- Weight
- -
- Accuracy
- -
- Features
- Round Shaft
- Approvals
- -
- Coil Type
- Bipolar
- Step Angle
- 7.5°
- Part Status
- Active
- Rotor Inertia
- -
- Coil Resistance
- 5.5 Ohms
- Voltage - Rated
- 24VDC
- Diameter - Shaft
- 0.157" (4.00mm)
- Size / Dimension
- Round - 2.160" Dia (55.00mm)
- Termination Style
- Wire Leads
- Steps per Revolution
- 48
- Current Rating (Amps)
- 600mA
- Mounting Hole Spacing
- 2.560" (65.00mm)
- Operating Temperature
- -
- Length - Shaft and Bearing
- 0.591" (15.00mm)
- Torque - Holding (oz-in / mNm)
- 23.4 / 167
