Lanka Micro

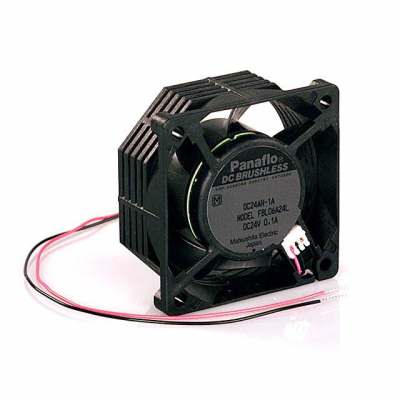

FBL06A24L1A
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | FBL06A24L1A | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 60X25.5MM 24VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3200 RPM
- Noise
- 24.0 dB
- Width
- 25.50mm
- Series
- FBL
- Weight
- 0.132 lb (59.87 g)
- Air Flow
- 14.1 CFM (0.395m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- -
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Hydro-wave (HWB)
- Power (Watts)
- 1.44W
- Voltage Range
- 14 ~ 27.6VDC
- Static Pressure
- 0.122 in H2O (30.4 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Material - Blade
- -
- Material - Frame
- -
- Size / Dimension
- Square - 60mm L x 60mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.060A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
