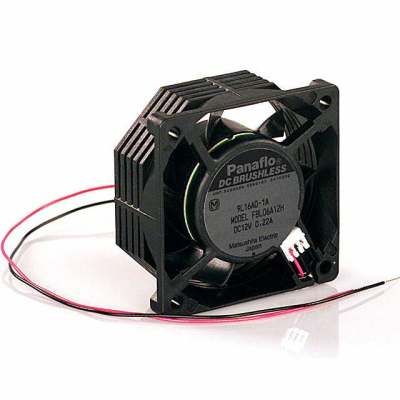

FBL06A12H1A
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | FBL06A12H1A | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 60X25.5MM 12VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4200 RPM
- Noise
- 32.0 dB
- Width
- 25.50mm
- Series
- FBL
- Weight
- 0.132 lb (59.87 g)
- Air Flow
- 19.1 CFM (0.535m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- -
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Hydro-wave (HWB)
- Power (Watts)
- 1.86W
- Voltage Range
- 7 ~ 13.8VDC
- Static Pressure
- 0.204 in H2O (51.0 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Material - Blade
- -
- Material - Frame
- -
- Size / Dimension
- Square - 60mm L x 60mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.155A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
