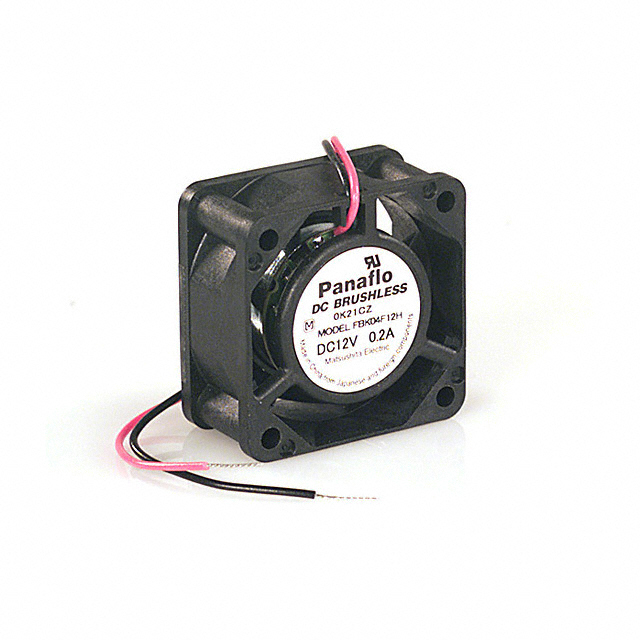

FBK04F12H

Product Parameter

RPM

7500 RPM

Noise

32.0 dB(A)

Width

20.00mm

Series

FBK

Weight

0.088 lb (39.92 g)

Air Flow

6.7 CFM (0.188m³/min)

Fan Type

Tubeaxial

Features

-

Approvals

UL

Part Status

Obsolete

Termination

2 Wire Leads

Bearing Type

Ball

Power (Watts)

1.80W

Voltage Range

7 ~ 13.8VDC

Static Pressure

0.260 in H2O (64.8 Pa)

Voltage - Rated

12VDC

Lifetime @ Temp.

-

Material - Blade

Plastic

Material - Frame

Plastic

Size / Dimension

Square - 40mm L x 40mm H

Ingress Protection

-

Current Rating (Amps)

0.150A

Operating Temperature

14 ~ 158°F (-10 ~ 70°C)
