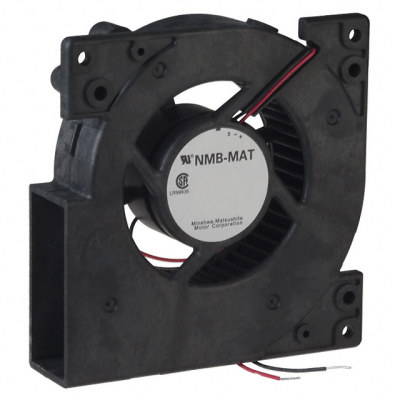

FAL6F24LL

Product Parameter

RPM

2100 RPM

Noise

40.0 dB

Width

28.10mm

Series

FAL-6F

Weight

0.551 lb (249.93 g)

Air Flow

18.7 CFM (0.524m³/min)

Fan Type

Blower

Features

-

Approvals

CSA, UL

Part Status

Obsolete

Termination

2 Wire Leads

Bearing Type

Hydro-wave (HWB)

Power (Watts)

3.72W

Voltage Range

14 ~ 27.6VDC

Static Pressure

0.453 in H2O (112.8 Pa)

Voltage - Rated

24VDC

Lifetime @ Temp.

30000 Hrs @ 25°C

Material - Blade

-

Material - Frame

-

Size / Dimension

Rectangular/Rounded - 109mm L x 111.4mm H

Ingress Protection

-

Current Rating (Amps)

0.155A

Operating Temperature

14 ~ 140°F (-10 ~ 60°C)
