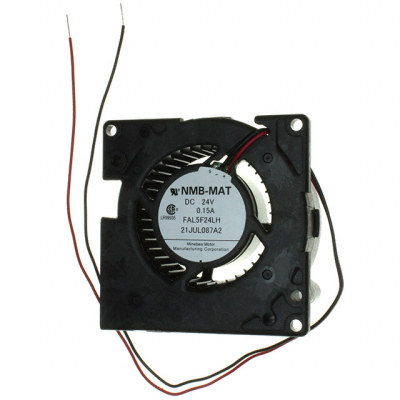

FAL5F24LH

Product Parameter

RPM

2900 RPM

Noise

36.0 dB

Width

28.00mm

Series

FAL-5F

Weight

0.22 lb (99.79 g)

Air Flow

10.6 CFM (0.297m³/min)

Fan Type

Blower

Features

-

Approvals

CSA, UL

Part Status

Obsolete

Termination

2 Wire Leads

Bearing Type

Hydro-wave (HWB)

Power (Watts)

2.40W

Voltage Range

14 ~ 27.6VDC

Static Pressure

0.382 in H2O (95.1 Pa)

Voltage - Rated

24VDC

Lifetime @ Temp.

40000 Hrs @ 25°C

Material - Blade

-

Material - Frame

-

Size / Dimension

Square/Rounded - 76mm L x 76mm H

Ingress Protection

-

Current Rating (Amps)

0.100A

Operating Temperature

14 ~ 140°F (-10 ~ 60°C)
