Lanka Micro

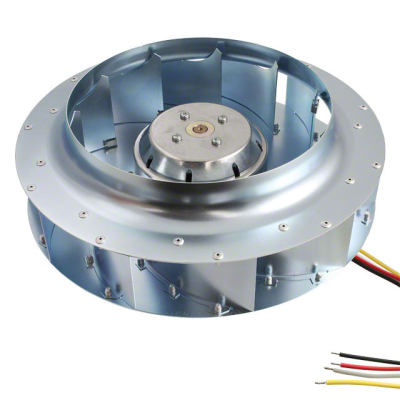

F250A3-072-D0730
| Manufacturer: | NMB Technologies Corporation |
In Stock 4 pcs
|
|
|---|---|---|---|
| Datasheet: | F250A3-072-D0730 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN IMP MTRZD 250X99.8MM 48VDC | $224.07 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3100 RPM
- Noise
- 81.0 dB
- Width
- 99.80mm
- Series
- F250
- Weight
- 5.3 lbs (2.4 kg)
- Air Flow
- 862.0 CFM (24.14m³/min)
- Fan Type
- Motorized Impellers
- Features
- PWM Control, Speed Sensor (Tach)
- Approvals
- -
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 163.2W
- Voltage Range
- 30 ~ 72VDC
- Static Pressure
- 2.985 in H2O (744.8 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Steel
- Material - Frame
- -
- Size / Dimension
- Round - 250mm Dia
- Ingress Protection
- -
- Current Rating (Amps)
- 3.4A
- Operating Temperature
- -22 ~ 158°F (-30 ~ 70°C)
