F175H3-061-D0540
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | F175H3-061-D0540 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |

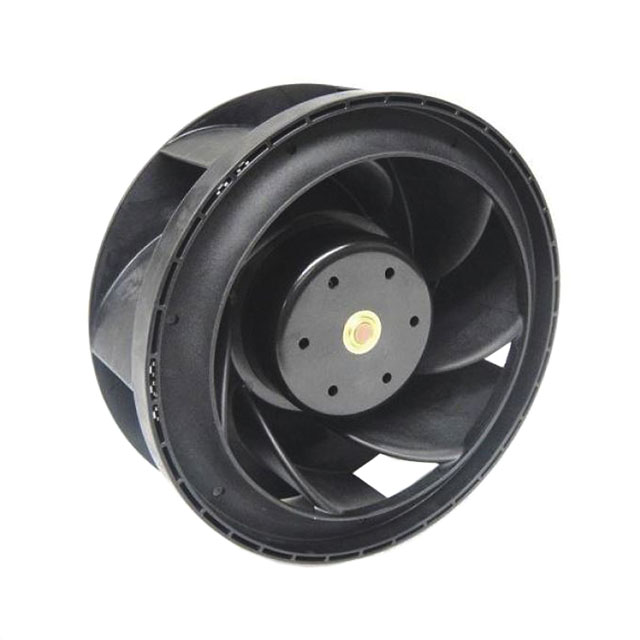

| Description: | FAN IMPELLER 175X69MM 24V | $166.81 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4700 RPM
- Noise
- 74.0 dB(A)
- Width
- 69.00mm
- Series
- F175H
- Weight
- 2 lbs (907.2 g)
- Air Flow
- 541.0 CFM (15.15m³/min)
- Fan Type
- Motorized Impellers
- Features
- PWM Control, Speed Sensor (Tach)
- Approvals
- -
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 113.0W
- Voltage Range
- 18 ~ 30VDC
- Static Pressure
- 3.490 in H2O (870.0 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Plastic
- Material - Frame
- -
- Size / Dimension
- Round - 175mm Dia
- Ingress Protection
- -
- Current Rating (Amps)
- 4.7A
- Operating Temperature
- -22 ~ 158°F (-30 ~ 70°C)
