Lanka Micro

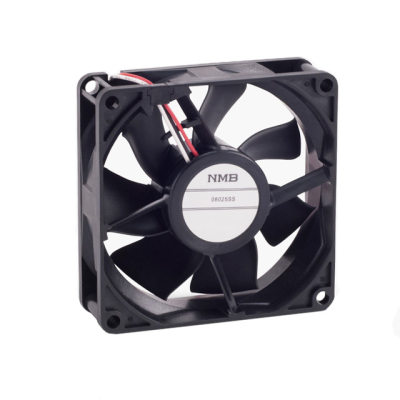

08025SS-24Q-AT-D0
| Manufacturer: | NMB Technologies Corporation |
In Stock 2 pcs
|
|
|---|---|---|---|
| Datasheet: | 08025SS-24Q-AT-D0 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 80X25MM 24VDC WIRE | $6.76 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4100 RPM
- Noise
- 39.5 dB
- Width
- 25.00mm
- Series
- 08025SS
- Air Flow
- 54.7 CFM (1.53m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Approvals
- -
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Sleeve
- Power (Watts)
- 5.04W
- Voltage Range
- 10 ~ 26.4VDC
- Static Pressure
- 0.270 in H2O (67.3 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.210A
- Operating Temperature
- 14 ~ 140°F (-10 ~ 60°C)
