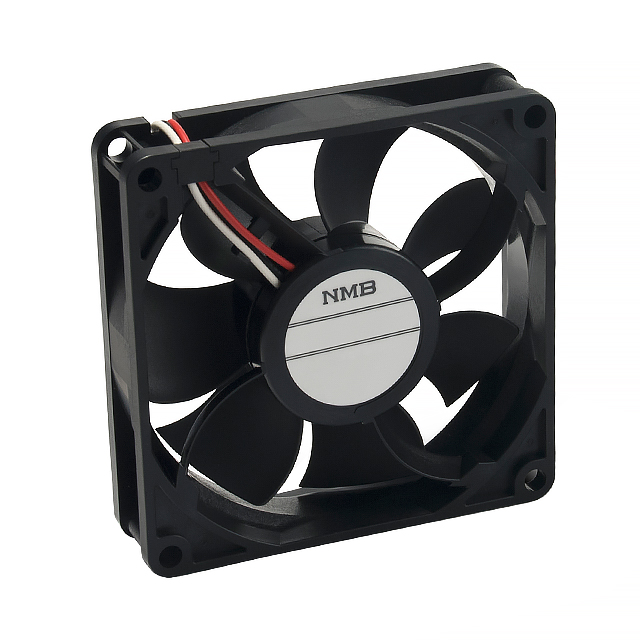

08020SA-12K-AT-00
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 08020SA-12K-AT-00 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 12VDC 80X20MM 3WR | $7.78 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2900 RPM
- Noise
- 31.0 dB
- Width
- 20.00mm
- Series
- 08020SA
- Weight
- 0.176 lb (79.83 g)
- Air Flow
- 31.1 CFM (0.871m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- -
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 840mW
- Voltage Range
- 6 ~ 13.8VDC
- Static Pressure
- 0.140 in H2O (34.9 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.070A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
