Lanka Micro

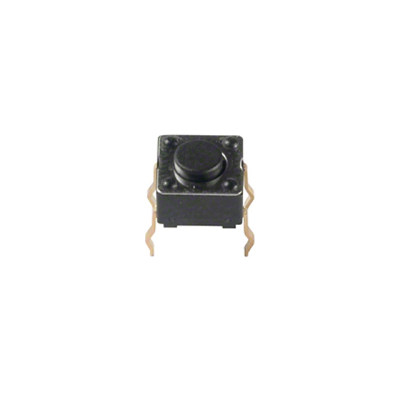

HP0215AFKP2-S
| Manufacturer: | NKK Switches |
In Stock 1059 pcs
|
|
|---|---|---|---|
| Datasheet: | HP0215AFKP2-S | ||
| Product Category: | Tactile Switches | Reference Price (In US Dollars) | 1pcs |
| Description: | SWITCH TACTILE SPST-NO 3VA 28V | $0.72 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- HP02
- Circuit
- SPST-NO
- Outline
- 6.20mm x 6.20mm
- Features
- Sealed - Flux Protection
- Packaging
- Tube
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Through Hole
- Switch Travel
- 0.20mm
- Mechanical Life
- 500,000 Cycles
- Operating Force
- 160gf
- Switch Function
- Off-Mom
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Termination Style
- PC Pin
- Ingress Protection
- -
- Actuator Orientation
- Top Actuated
- Operating Temperature
- -20°C ~ 70°C
- Contact Rating @ Voltage
- 3VA @ 28VDC
- Illumination Type, Color
- -
- Actuator Length, Right Angle
- -
- Illumination Voltage (Nominal)
- -
- Actuator Height off PCB, Vertical
- 4.30mm
