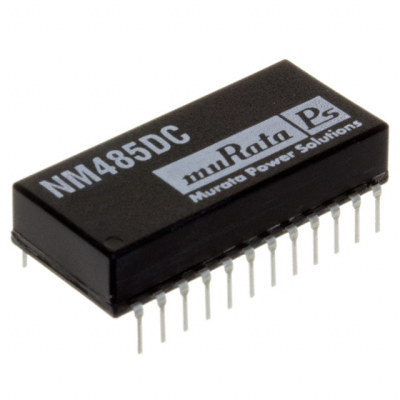

NM485DC

Product Parameter

Type

General Purpose

Series

-

Data Rate

1.25Mbps

Packaging

Tube

Technology

Capacitive Coupling

Part Status

Obsolete

Channel Type

Unidirectional

Mounting Type

Through Hole

Isolated Power

No

Package / Case

24-DIP (0.667", 16.95mm)

Voltage - Supply

4.75V ~ 5.25V

Number of Channels

4

Voltage - Isolation

1000Vrms

Operating Temperature

0°C ~ 60°C

Inputs - Side 1/Side 2

2/2

Rise / Fall Time (Typ)

-

Supplier Device Package

24-DIL

Pulse Width Distortion (Max)

-

Propagation Delay tpLH / tpHL (Max)

-

Common Mode Transient Immunity (Min)

-
