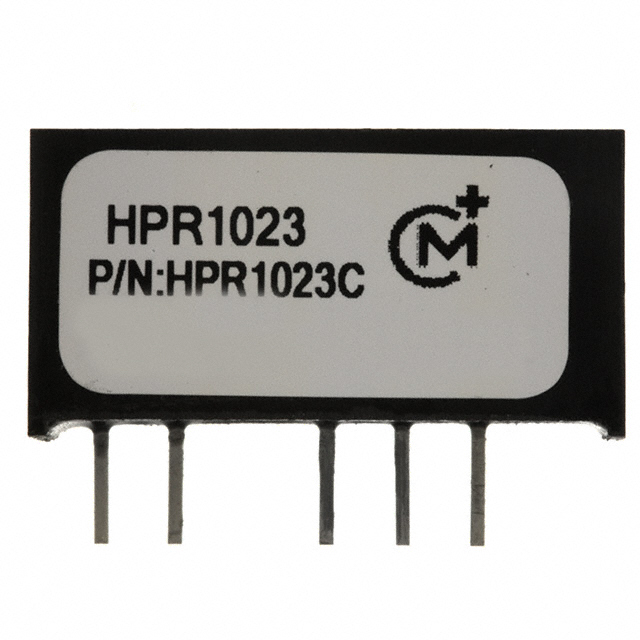

HPR1023C

Product Parameter

Type

Isolated Module

Series

HPR10xxC (1W)

Features

-

Packaging

Tube

Efficiency

72%

Part Status

Obsolete

Applications

ITE (Commercial)

Mounting Type

Through Hole

Power (Watts)

1W

Package / Case

7-SIP Module, 5 Leads

Control Features

-

Size / Dimension

0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm)

Number of Outputs

2

Voltage - Output 1

15V

Voltage - Output 2

-15V

Voltage - Output 3

-

Voltage - Isolation

1kV

Operating Temperature

-25°C ~ 65°C

Voltage - Input (Max)

26.4V

Voltage - Input (Min)

21.6V

Current - Output (Max)

34mA, 34mA
