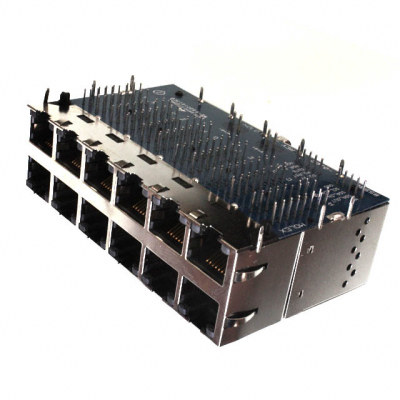

85586-1005
| Manufacturer: | Molex |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 85586-1005 | ||
| Product Category: | Modular Connectors - Jacks With Magnetics | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN MAGJACK 12PORT 1000 BASE-T | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- Hyperjack 1000, 85586
- Features
- Board Guide
- LED Color
- Green, Orange - Green, Orange
- Packaging
- Tray
- Shielding
- Shielded, EMI Finger
- Orientation
- 90° Angle (Right)
- Part Status
- Obsolete
- Termination
- Solder
- Applications
- 10/100/1000 Base-T, AutoMDIX, Power over Ethernet (PoE)
- Mounting Type
- Through Hole
- Tab Direction
- Up and Down
- Connector Type
- RJ45
- Contact Finish
- Gold
- Number of Rows
- 2
- Number of Ports
- 12
- Shield Material
- Brass
- Contact Material
- Phosphor Bronze
- Height Above Board
- 1.002" (25.46mm)
- Dielectric Material
- Thermoplastic
- Operating Temperature
- 0°C ~ 70°C
- Contact Finish Thickness
- 50.0µin (1.27µm)
- Number of Cores per Jack
- 8
