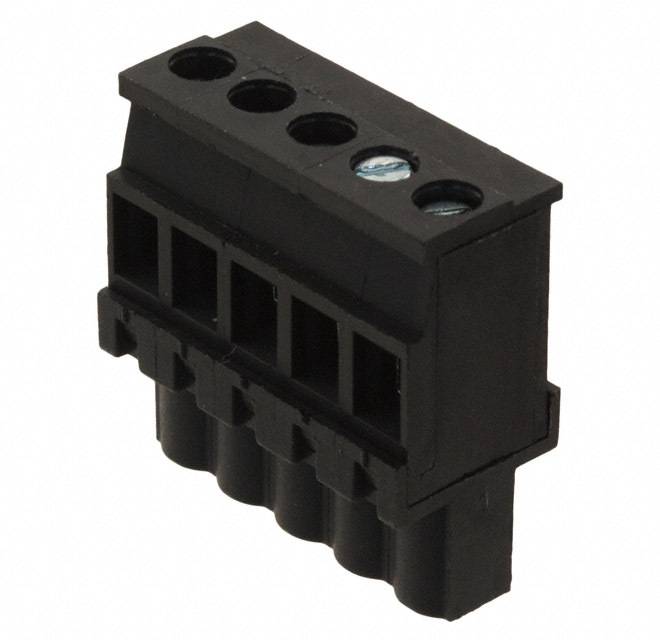

39533-2005
| Manufacturer: | Molex |
In Stock 170 pcs
|
|
|---|---|---|---|
| Datasheet: | 39533-2005 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | TERM BLOCK PLUG 5POS 5.08MM | $4.32 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug, Female Sockets
- Color
- Black
- Pitch
- 0.200" (5.08mm)
- Series
- Eurostyle ESE 39533
- Features
- Retention Latches (Non-Wire Side)
- Packaging
- Bulk
- Screw Size
- -
- Part Status
- Active
- Current - UL
- 15A
- Voltage - UL
- 300V
- Current - IEC
- -
- Mounting Type
- Free Hanging (In-Line)
- Torque - Screw
- 0.56 Nm (5.0 Lb-In)
- Plug Wire Entry
- 270°
- Contact Material
- Phosphor Bronze
- Number of Levels
- 1
- Insulation Height
- 1.020" (25.91mm)
- Termination Style
- Screw - Rising Cage Clamp
- Wire Strip Length
- 5mm
- Header Orientation
- -
- Ingress Protection
- -
- Contact Tail Length
- -
- Dielectric Material
- Polyamide (PA66), Nylon 6/6
- Number of Positions
- 5
- Positions Per Level
- 5
- Contact Mating Finish
- Tin
- Operating Temperature
- -40°C ~ 105°C
- Wire Gauge or Range - AWG
- 12-26 AWG
- Wire Gauge or Range - mm²
- -
- Material Flammability Rating
- UL94 V-0
