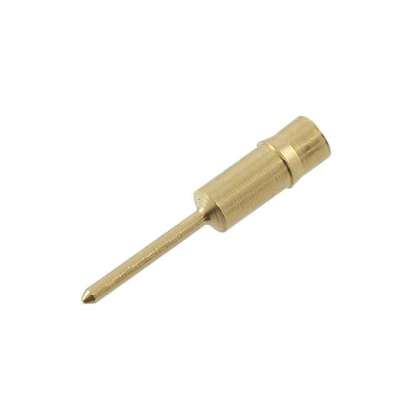

8114-0-15-15-16-27-04-0
| Manufacturer: | Mill-Max Manufacturing Corp. |
In Stock 9057 pcs
|
|
|---|---|---|---|
| Datasheet: | 8114-0-15-15-16-27-04-0 | ||
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN PIN RCPT .022-.034 PRESSFIT | $0.43 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- 8114
- Features
- -
- Packaging
- Bulk
- Tail Type
- Standard Tail
- Part Status
- Active
- Termination
- Press-Fit
- Socket Depth
- 0.150" (3.81mm)
- Tail Diameter
- 0.020" (0.51mm)
- Contact Finish
- Gold
- Board Thickness
- -
- Flange Diameter
- -
- Insertion Force
- -
- Contact Material
- Beryllium Copper
- Length - Overall
- 0.370" (9.40mm)
- Pin Hole Diameter
- 0.051" (1.30mm)
- Accepts Pin Diameter
- 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
- Operating Temperature
- -55°C ~ 125°C
- Mounting Hole Diameter
- 0.065" (1.65mm)
- Accepts Square Pin Size
- 0.025" (0.64mm)
- Contact Finish Thickness
- 30.0µin (0.76µm)
