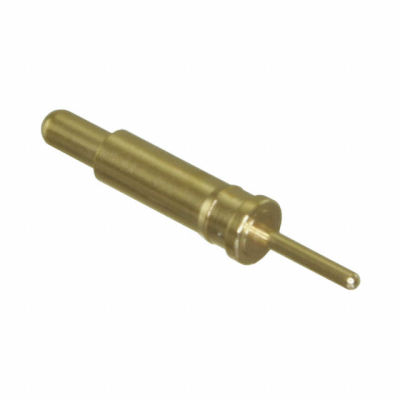

7913-0-15-20-77-14-11-0
| Manufacturer: | Mill-Max Manufacturing Corp. |
In Stock 2143 pcs
|
|
|---|---|---|---|
| Datasheet: | 7913-0-15-20-77-14-11-0 | ||
| Product Category: | Contacts, Spring Loaded and Pressure | Reference Price (In US Dollars) | 1pcs |
| Description: | CONTACT SPRING LOADED T/H GOLD | $0.79 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- 7913
- Features
- -
- Packaging
- Bulk
- Part Status
- Active
- Contact Type
- Sleeve & Plunger
- Plunger Size
- 0.042" (1.07mm) Dia
- Mating Cycles
- 1000000
- Mounting Type
- Through Hole
- Contact Finish
- Gold
- Contact Material
- Copper Alloy
- Pad Layout Dimension
- Circular - 0.070" (1.78mm) (TH)
- Current Rating (Amps)
- 2A
- Operating Temperature
- -55°C ~ 125°C
- Maximum Working Height
- 0.288" (7.32mm)
- Minimum Working Height
- 0.198" (5.03mm)
- Contact Finish Thickness
- 20.0µin (0.51µm)
- Operating Force - Initial
- 25gf
- Recommended Working Height
- 0.243" (6.18mm)
- Material Flammability Rating
- -
- Operating Force - Mid Compression
- 60gf
