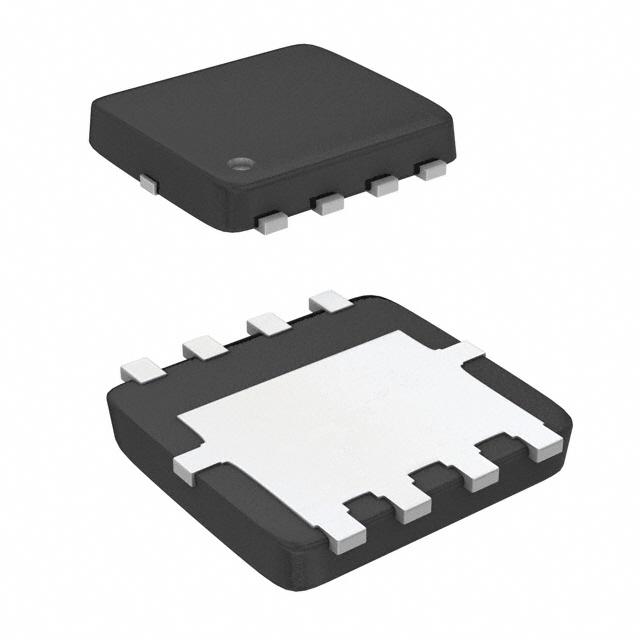

MCAC53N06Y-TP
| Manufacturer: | Micro Commercial Co |
In Stock 9840 pcs
|
|
|---|---|---|---|
| Datasheet: | MCAC53N06Y-TP | ||
| Product Category: | Transistors - FETs, MOSFETs - Single | Reference Price (In US Dollars) | 1pcs |
| Description: | N-CHANNEL,MOSFETS,DFN5060 PACKAG | $0.7 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- -
- FET Type
- N-Channel
- Packaging
- Cut Tape (CT)
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- 8-PowerVDFN
- Vgs(th) (Max) @ Id
- 2.5V @ 250µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 8.2mOhm @ 20A, 10V
- Power Dissipation (Max)
- 70W (Tc)
- Supplier Device Package
- DFN5060
- Gate Charge (Qg) (Max) @ Vgs
- 31nC @ 10V
- Drain to Source Voltage (Vdss)
- 60V
- Input Capacitance (Ciss) (Max) @ Vds
- 1988pF @ 30V
- Current - Continuous Drain (Id) @ 25°C
- 53A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)
- 4.5V, 10V
