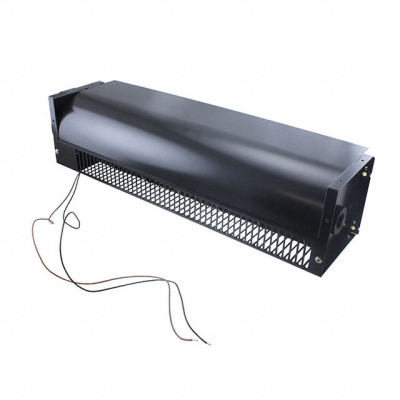

UF9446CBP12H-L
| Manufacturer: | Mechatronics Fan Group |
In Stock 4 pcs
|
|
|---|---|---|---|
| Datasheet: | UF9446CBP12H-L | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN BLWR CF 120VAC 570X150X130MM | $94.95 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 1550 RPM
- Noise
- 53.0 dB(A)
- Width
- 125.0mm
- Series
- UF9446
- Weight
- 7.9 lbs (3.6 kg)
- Air Flow
- 354.0 CFM (9.91m³/min)
- Fan Type
- Blower, Cross Flow
- Features
- Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
- Approvals
- CE, TUV
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 50.0W
- Voltage Range
- -
- Static Pressure
- 0.200 in H2O (49.8 Pa)
- Voltage - Rated
- 120VAC
- Material - Blade
- Plastic
- Material - Frame
- Steel
- Size / Dimension
- Rectangular - 570mm L x 130mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.420A
- Operating Temperature
- -40 ~ 158°F (-40 ~ 70°C)
