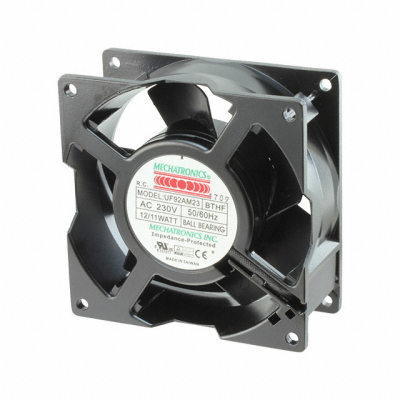

UF92AM23-BTHR-F
| Manufacturer: | Mechatronics Fan Group |
In Stock 2 pcs
|
|
|---|---|---|---|
| Datasheet: | UF92AM23-BTHR-F | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 92X38MM 230VAC TERM | $25.48 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3300 RPM
- Noise
- 42.0 dB(A)
- Width
- 38.00mm
- Series
- UF92AM
- Weight
- 0.948 lb (430.01 g)
- Air Flow
- 51.0 CFM (1.43m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Power (Watts)
- 11.00W
- Voltage Range
- -
- Static Pressure
- 0.300 in H2O (74.7 Pa)
- Voltage - Rated
- 230VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Metal
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 92.5mm L x 92.5mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.090A
- Operating Temperature
- -40 ~ 194°F (-40 ~ 90°C)
