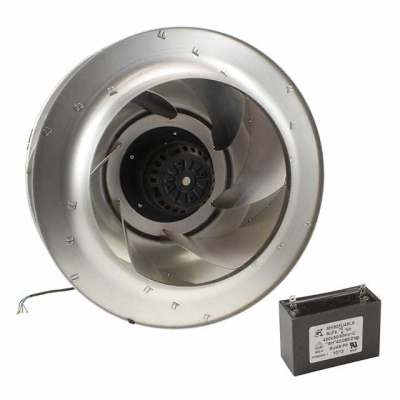

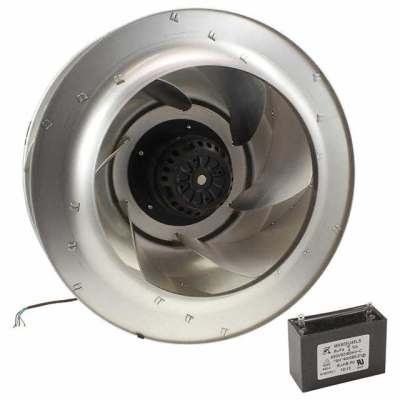

UF360AAA23-H1C4A
| Manufacturer: | Mechatronics Fan Group |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | UF360AAA23-H1C4A | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | IMPELLER 360X167MM 230VAC | $221.55 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 1600 RPM
- Noise
- 70.0 dB(A)
- Width
- 167.3mm
- Series
- UF360AAA
- Weight
- 11 lbs (5 kg)
- Air Flow
- 1645.0 CFM (46.06m³/min)
- Fan Type
- Motorized Impellers
- Features
- Permanent Split Capacitor Motor
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 265W
- Voltage Range
- -
- Static Pressure
- 2.200 in H2O (548.0 Pa)
- Voltage - Rated
- 230VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Aluminum
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 360mm Dia
- Ingress Protection
- -
- Current Rating (Amps)
- 1.13A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
