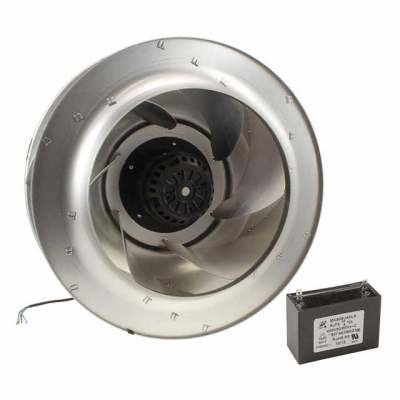

UF318AAA23-H1C4A
| Manufacturer: | Mechatronics Fan Group |
In Stock 2 pcs
|
|
|---|---|---|---|
| Datasheet: | UF318AAA23-H1C4A | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | IMPELLER 318X154MM 230VAC | $160.44 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 1580 RPM
- Noise
- 66.0 dB(A)
- Width
- 154.4mm
- Series
- UF318AAA
- Weight
- 8.3 lbs (3.8 kg)
- Air Flow
- 1165.0 CFM (32.62m³/min)
- Fan Type
- Motorized Impellers
- Features
- Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 160W
- Voltage Range
- -
- Static Pressure
- 1.600 in H2O (398.6 Pa)
- Voltage - Rated
- 230VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Steel
- Material - Frame
- Steel
- Size / Dimension
- Round - 318mm Dia
- Ingress Protection
- -
- Current Rating (Amps)
- 0.700A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
