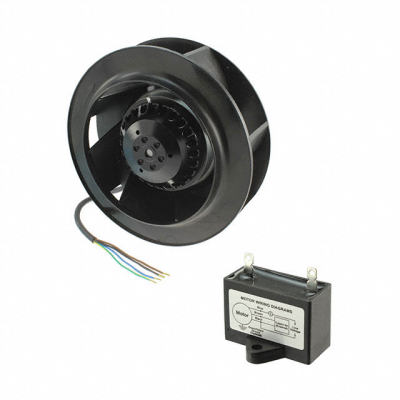

UF190APA12-H1C2F
| Manufacturer: | Mechatronics Fan Group |
In Stock 1 pcs
|
|
|---|---|---|---|
| Datasheet: | UF190APA12-H1C2F | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | IMPELLER 190X70MM 115VAC RING | $76.83 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2700 RPM
- Noise
- 63.0 dB(A)
- Width
- 70.00mm
- Series
- UF190APA
- Weight
- 3.2 lbs (1.5 kg)
- Air Flow
- 247.0 CFM (6.92m³/min)
- Fan Type
- Motorized Impellers
- Features
- Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 65.0W
- Voltage Range
- -
- Static Pressure
- 1.500 in H2O (373.6 Pa)
- Voltage - Rated
- 115VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Polyamide (PA), Nylon
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 190mm Dia
- Ingress Protection
- -
- Current Rating (Amps)
- 0.540A
- Operating Temperature
- -40 ~ 122°F (-40 ~ 50°C)
