Lanka Micro

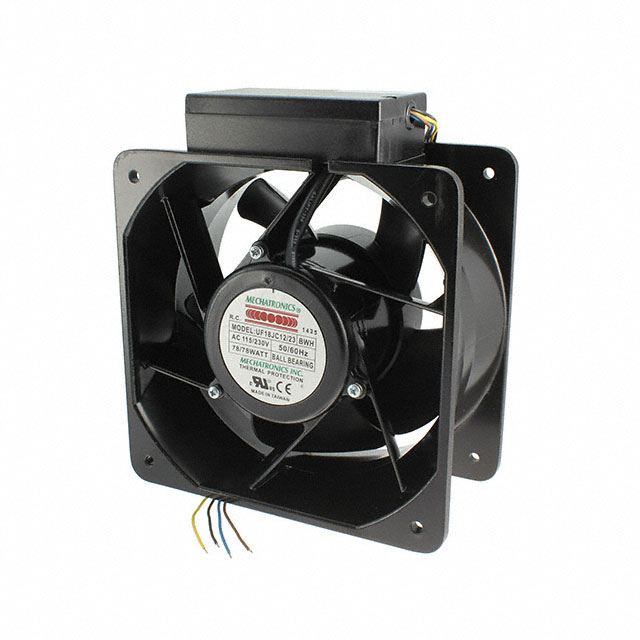

UF18JC12/23-BWHR
| Manufacturer: | Mechatronics Fan Group |
In Stock 24 pcs
|
|
|---|---|---|---|
| Datasheet: | UF18JC12/23-BWHR | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 180X90MM 115/230VAC | $88.4 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3400 RPM
- Noise
- 59.0 dB(A)
- Width
- 90.00mm
- Series
- UF18JC-4
- Weight
- 4.8 lbs (2.2 kg)
- Air Flow
- 460.0 CFM (12.88m³/min)
- Fan Type
- Tubeaxial
- Features
- Dual Voltage, Permanent Split Capacitor Motor
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 72.0W
- Voltage Range
- -
- Static Pressure
- 1.060 in H2O (264.0 Pa)
- Voltage - Rated
- 115/230VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 180mm L x 180mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.310A/0.630A
- Operating Temperature
- -40 ~ 158°F (-40 ~ 70°C)
