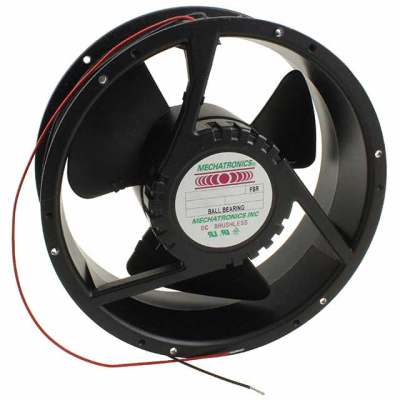

MM2280H48B-FSR
| Manufacturer: | Mechatronics Fan Group |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | MM2280H48B-FSR | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 222X80MM 48VDC | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3000 RPM
- Noise
- 60.0 dB(A)
- Width
- 80.00mm
- Series
- MM2280
- Weight
- 3.5 lbs (1.6 kg)
- Air Flow
- 625.0 CFM (17.50m³/min)
- Fan Type
- Tubeaxial
- Features
- Thermal Overload Protector (TOP)
- Approvals
- cUL, TUV, UL
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- -
- Static Pressure
- 0.097 in H2O (24.3 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Magnesium Alloy
- Material - Frame
- Magnesium Alloy
- Size / Dimension
- Round - 222mm Dia
- Ingress Protection
- -
- Current Rating (Amps)
- 1.40A
- Operating Temperature
- -40 ~ 158°F (-40 ~ 70°C)
